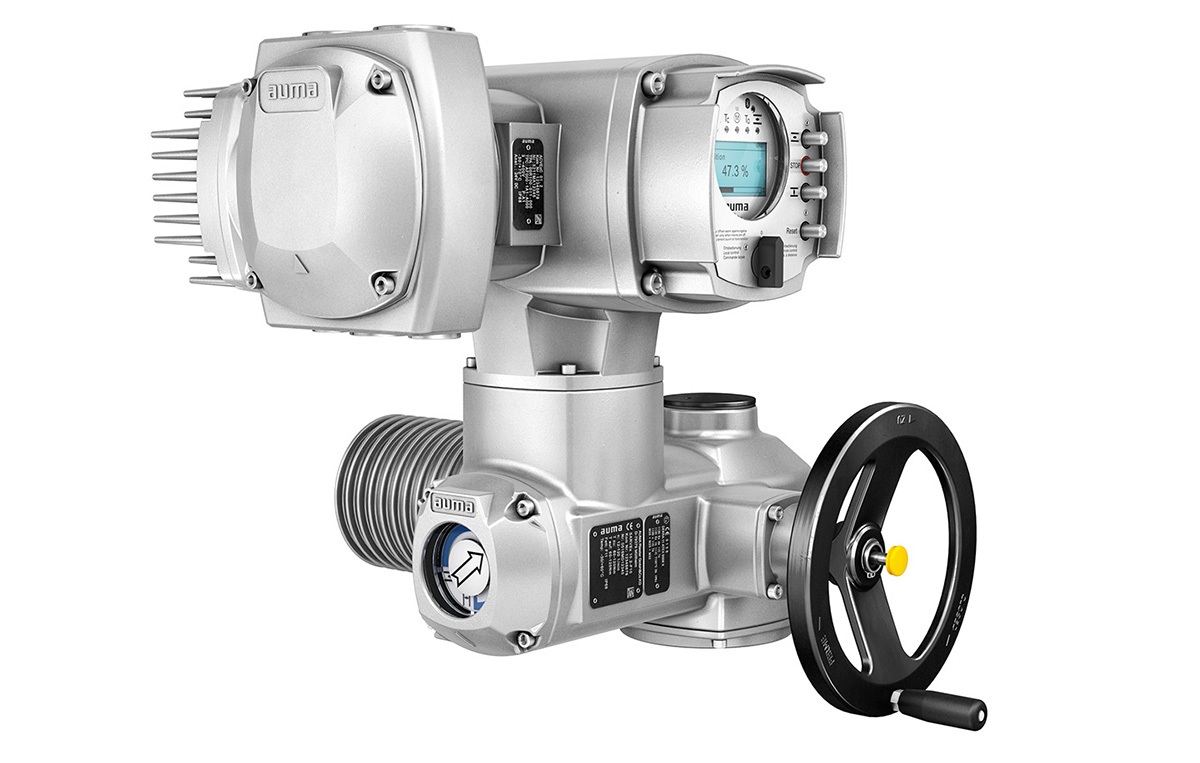

Explosion-proof variable speed actuators SAVEx and SARVEx

Multi-turn actuators SAVEx .2 for open-close duty and SARVEx .2 for modulating duty are paired with intelligent ACVExC 01.2 actuator controls. The proven AUMA SAEx/SAREx range is enhanced by variable speed models. With a wide speed control ratio of 1:10, AUMA is spearheading market technology in providing variable speed actuators for use in potentially explosive atmospheres.



SAVEx multi-turn actuators are rated for open-close duty and positioning duty (classes A and B) / (short-time duty S2 – 15 min). Special sizing for longer running times is available for the S2 – 30 min duty.



SARVEx multi-turn actuators are rated for modulating duty (class C) S4 – 25 %. Special versions for S4 – 50 % are also available.

Category:

Description

Design features SAVEx

  • Torque range from 10 Nm to 1,000 Nm
  • Output speeds from 6 to 216 rpm
  • Limit and torque sensing
  • Available with 3-ph AC
  • Handwheel for manual operation
  • Valve protection by soft start and stop
  • Avoiding pressure surge by speed profile
  • EMERGENCY behaviour and failure behaviour with separate speed setpoints
  • Synchronous link – synchronous operation of two actuators

Design features SARVEx

  • Torque range from 15 Nm to 1,000 Nm
  • Modulating torque range from 15 Nm to 350 Nm
  • Max. number of starts 1,500 c/h
  • Output speeds from 6 to 216 rpm
  • Limit and torque sensing
  • Available with 3-ph AC
  • Handwheel for manual operation
  • Superior positioning accuracy
  • Valve protection by soft start and stop
  • Avoiding pressure surge by speed profile
  • EMERGENCY behaviour and failure behaviour with separate speed setpoints
  • Synchronous link – synchronous operation of two actuators

Ambient conditions

  • High enclosure protection
  • High quality corrosion protection
  • Wide ambient temperature ranges

Options

  • Intermediate position switches
  • Switches in tandem version
  • Remote position transmitter
  • Magnetic limit and torque Transmitter
  • Mechanical position indicator

Interfaces

  • Electrical connection via AUMA plug/socket connector (optionally terminals)
  • Cable entries in different versions
  • Output drive types according to ISO and DIN Standards

Interface and functional features

  • Programmable potential-free output contacts for status signalisation
  • Valve protection by soft start and stop
  • Avoiding pressure surges thanks to speed profile
  • EMERGENCY behaviour and failure behaviour with separate speed setpoints
  • Multiport valves with up to 16 ports are positioned both quickly and with utmost precision
  • Process controller (PID)
  • Fieldbus control
  • EMERGENCY behaviour in and behaviour on loss of communication (programmable)
  • Operating data logging
  • Bluetooth interface to notebook and Android tablet

Approvals

    • Europe – ATEX II2G Ex d(e) IIC T4 or T3 Gb II2G c IIC T4 or T3 II2D Ex tb IIC T130 °C or T190 °C Db IP6x

  • International level/Australia – IEC II2G Ex d(e) IIC T4 or T3 Gb II2G c IIC T4 or T3 II2D Ex tb IIC T130 °C or T190 °C Db IP6x
